ZJ-W22

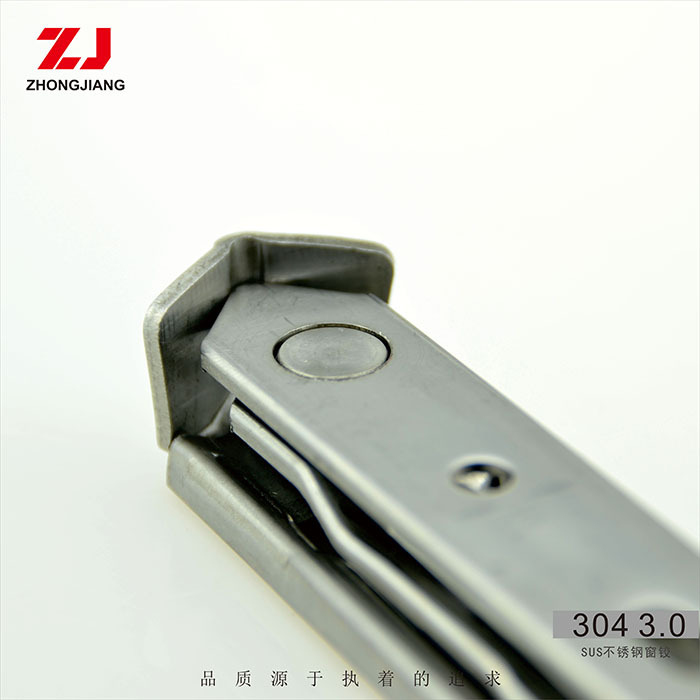

※(304)is made of high quality stainliss steel manufacturing;
※In JG/T 127-2007 standard for building doors and windows Hardware-friction;
※Can adjust opening Angle section(lock activity)fixed block;
※The ministry of construction committee recommended products for doors and windows fittings;
※This product is a professional stamping made heavy industry automation equipment,precision, beautiful,strong and durable;
※Fifty thousand times by authorities after test can still be normal operation,ensure continuing durable use;
| Installation dimensions | Alumminium window specification | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| linkage quantity | Chip thickness(mm) | Specifications | A | B | C | D | E | F | G | H | I | J | K | L | Window highest(mm) | Window widest(mm) | Window weight(kg) | Opening angle(±2°) |
| four-bar linkage | ≥2.5/3.0 | 10" | - | 36 | 86.5 | 186.5 | 196 | 24 | 35.5 | - | 244 | - | 251 | 251 | 1500 | 500 | 19/23 | 90° |
| ≥2.5/3.0 | 12" | 39.5 | 67.5 | 124.5 | 197.1 | 207.2 | 24.3 | 141.7 | 192.4 | 235.4 | - | 290.4 | 298.3 | 1500 | 600 | 24/28 | 45°/90° | |
| ≥2.5/3.0 | 14" | 39.5 | 67.5 | 124.5 | 212.4 | 222.5 | 24 | 138.2 | 201 | 242.3 | 293.4 | 339.6 | 347 | 1800 | 700 | 29/33 | 45°/90° | |
| ≥2.5/3.0 | 16" | 39.5 | 67.5 | 124.5 | 226.6 | 236.7 | 25.3 | 143.2 | 208.8 | 251.5 | 336.7 | 390.5 | 399 | 1800 | 800 | 36/38 | 45°/90° | |
